# Installation & Setup

## Complete Step-by-Step Installation Guide

> **💥 Target Audience**: Complete beginners with zero EA trading experience
>
> **⚡ Already familiar with MetaTrader 4?** Check out our [💻 Installation Guide](https://github.com/itradeaims/bananaEA-dev/blob/dev/gitbook/beginner-course/installation.md) for a faster, technical installation process.

> Reading Time: 15 minutes

This guide will walk you through installing BananaEA on MetaTrader 4 with **zero technical experience required**. Follow each step carefully and you'll be ready to trade in 15 minutes.

***

## 🎯 Before You Start

### What You Need

✅ **MetaTrader 4** installed and working\
✅ **Demo trading account** with your broker (start here!)\
✅ **BananaEA files** downloaded\
✅ **15 minutes** of uninterrupted time

### What You DON'T Need

❌ Programming knowledge\
❌ Previous EA experience\
❌ Expensive computer or VPS\
❌ Live trading account (demo first!)

***

## 📋 Step 1: Prepare MetaTrader 4

### Check Your Demo Account

1. **Open MetaTrader 4** from your desktop
2. **Verify you're connected** - Look for connection status in bottom-right corner
3. **Ensure demo account is active** - Check account number and balance

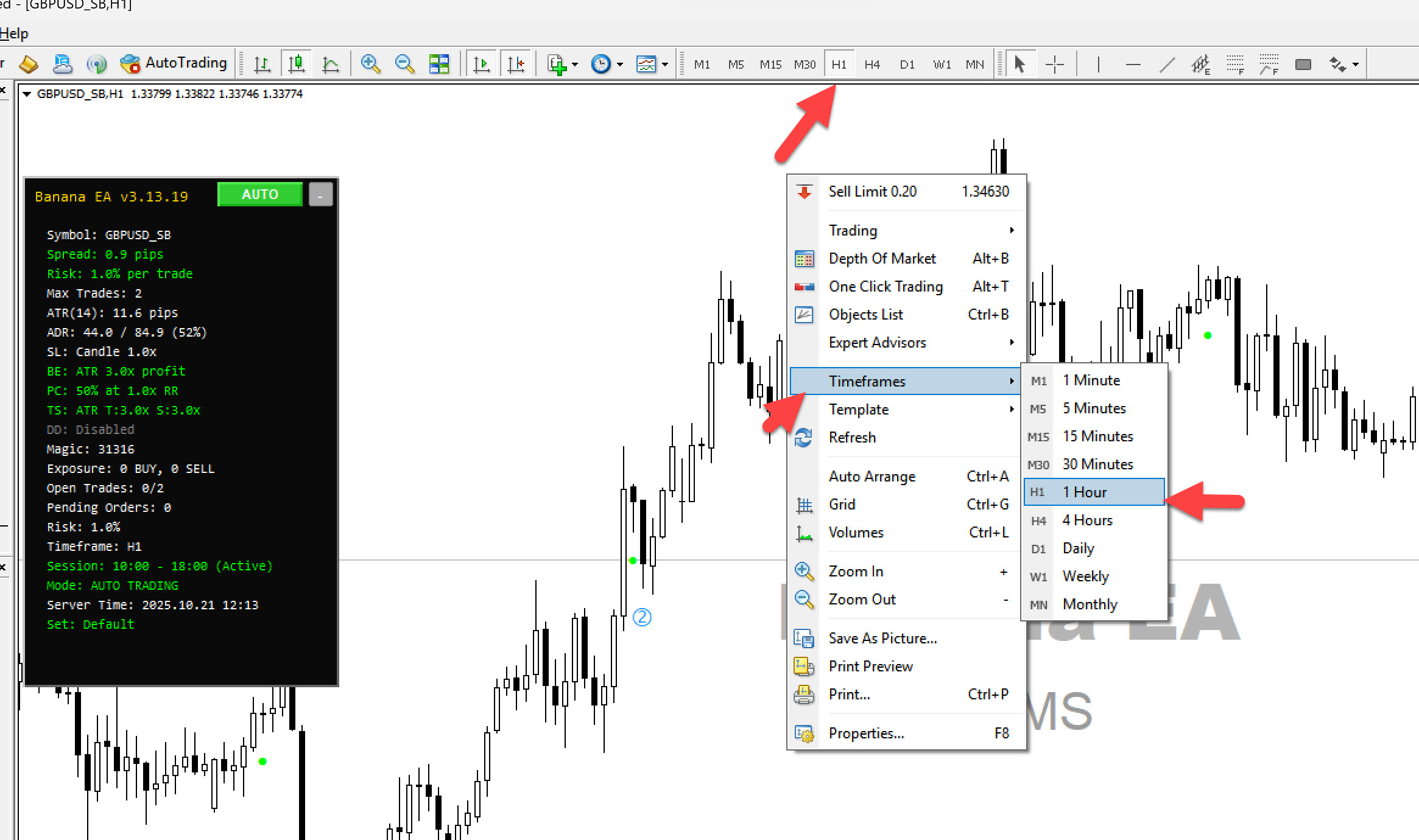

### Verify Chart Display

1. **Look at any currency pair** (e.g. EUR/USD chart) - Some brokers open default charts
2. **Confirm price updates** - Prices should be moving (during market hours)
3. **Check timeframe** - Start with M1 (1-minute) charts switch to M5 if needed. To change timeframe, right-click chart → Timeframes → M1 or what most traders do is click on the M1 button in the toolbar.

<figure><img src="https://445469373-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzPFbTIAo9zpPxaN6LSgQ%2Fuploads%2Fgit-blob-60614a65879e03d031b3dfaa94b5438a020e5ea9%2Fbeginner-1.jpg?alt=media" alt=""><figcaption></figcaption></figure>

### Enable Expert Advisors

1. **Look for "AutoTrading" button** in MT4 toolbar (top of screen)
2. **Check button status**:

* ✅ **GREEN AutoTrading button** = EAs can trade
* ❌ **RED AutoTrading button** = EAs cannot trade

If button is RED: Click it to turn GREEN

<figure><img src="https://445469373-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzPFbTIAo9zpPxaN6LSgQ%2Fuploads%2Fgit-blob-7978b01a29f84c7eea7a044f105dbed69872b702%2Fbeginner-2.jpg?alt=media" alt=""><figcaption></figcaption></figure>

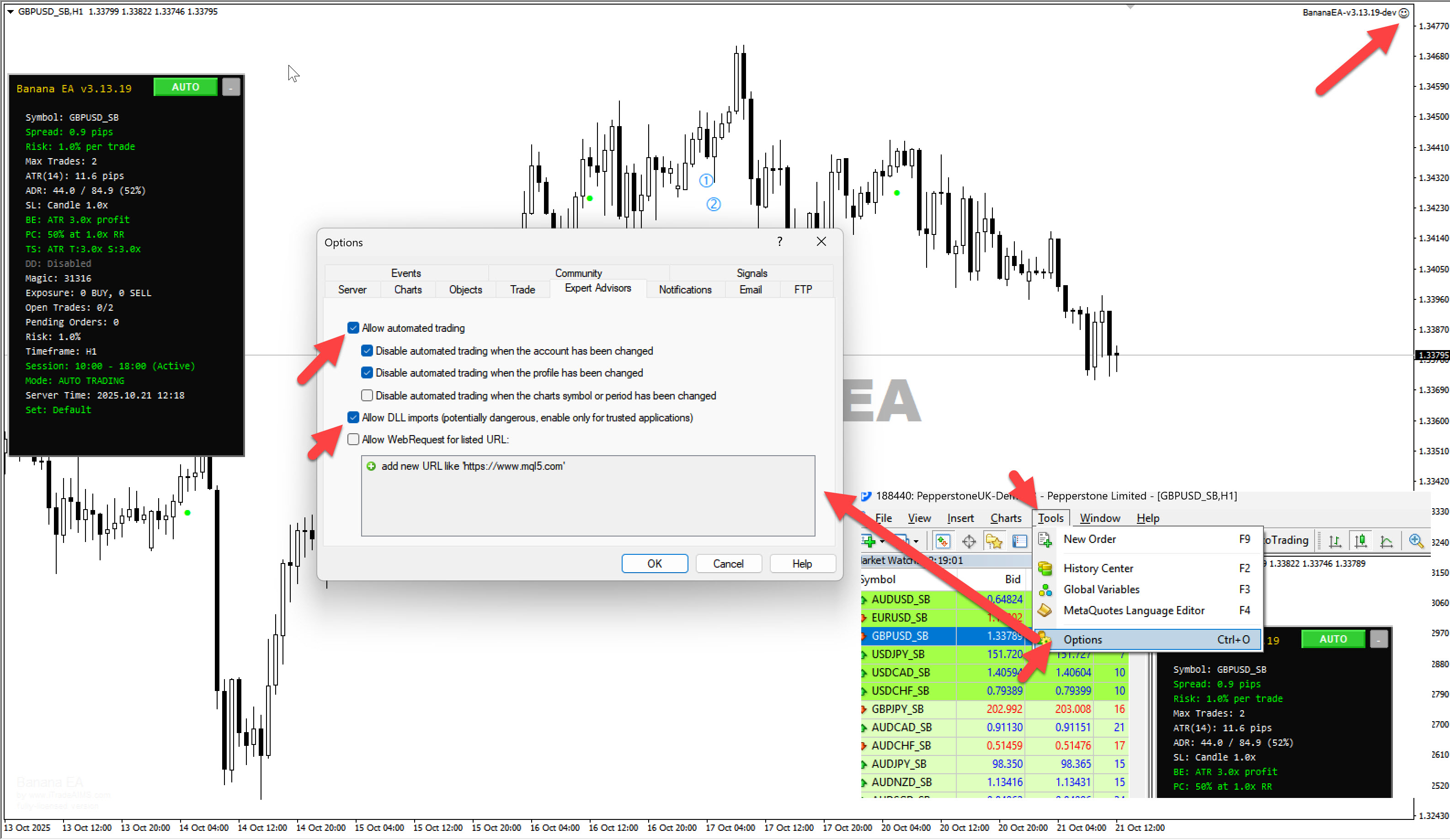

### Configure EA Settings

1. **Go to Tools → Options**
2. **Click "Expert Advisors" tab**
3. **Enable these settings**:

```
☑ Allow automated trading
☑ Allow DLL imports
☑ Confirm DLL function calls
☑ Allow imports of external experts
```

Click "OK"

<figure><img src="https://445469373-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzPFbTIAo9zpPxaN6LSgQ%2Fuploads%2Fgit-blob-03e429f80263f38fae15e94dad945bdffd744022%2FInstallation-6.jpg?alt=media" alt=""><figcaption></figcaption></figure>

***

## 📂 Step 2: Locate MetaTrader Data Folder

### Method 1: Through MT4 Menu

1. **In MT4**: File → Open Data Folder
2. **Data folder opens automatically**

### Method 2: Manual Location

* Usually located at: `C:\Users\[YourName]\AppData\Roaming\MetaQuotes\Terminal\[BrokerID]\`

### Navigate to Experts Folder

1. **In the opened folder**: Go to `MQL4` folder
2. **Open the `Experts` folder**

### Copy BananaEA Files

1. **Copy the main EA file** to the `Experts` folder:
   * `BananaEA.ex4` (main EA file)
2. **Copy the library file** to the `Libraries` folder:
   * Navigate back to `MQL4` folder
   * Open the `Libraries` folder
   * Copy `iTradeAIMSLib.ex4` (required library file - **MUST BE INSTALLED**)

> **⚠️ Important**: You will only receive compiled `.ex4` files for security. Source code is not distributed to protect intellectual property.
>
> **⚠️ Critical**: Both files are required! The EA will not work without the library file in the Libraries folder.

### Restart MetaTrader

1. **Close MetaTrader 4** completely
2. **Wait 5 seconds**
3. **Reopen MetaTrader 4**

***

## 📊 Step 3: Choose Your Trading Pair

### Beginner Recommendation: EUR/USD

**Why EUR/USD is perfect for beginners:**

* Most liquid currency pair (best execution)
* Lowest spreads (reduced trading costs)
* Predictable behavior during European/US sessions
* Extensive historical data for backtesting

### Alternative Options

**For more experienced traders:**

* **GBP/USD**: Higher volatility, bigger moves
* **USD/JPY**: Asian session activity
* **EUR/GBP**: European pairs correlation

### Open Your Chart

1. **File → New Chart → EURUSD**
2. **Set timeframe to M1** (1-minute)
3. **Ensure chart is displaying current prices**

***

## 🤖 Step 4: Attach BananaEA to Chart

### Open Expert Advisor Panel

1. **View → Navigator** (or press Ctrl+N)
2. **Look for "Expert Advisors" section**
3. **Find "BananaEA"** in the list

### Attach EA to Chart

1. **Drag "BananaEA"** from Navigator to your EUR/USD chart
2. **EA Settings window opens automatically**

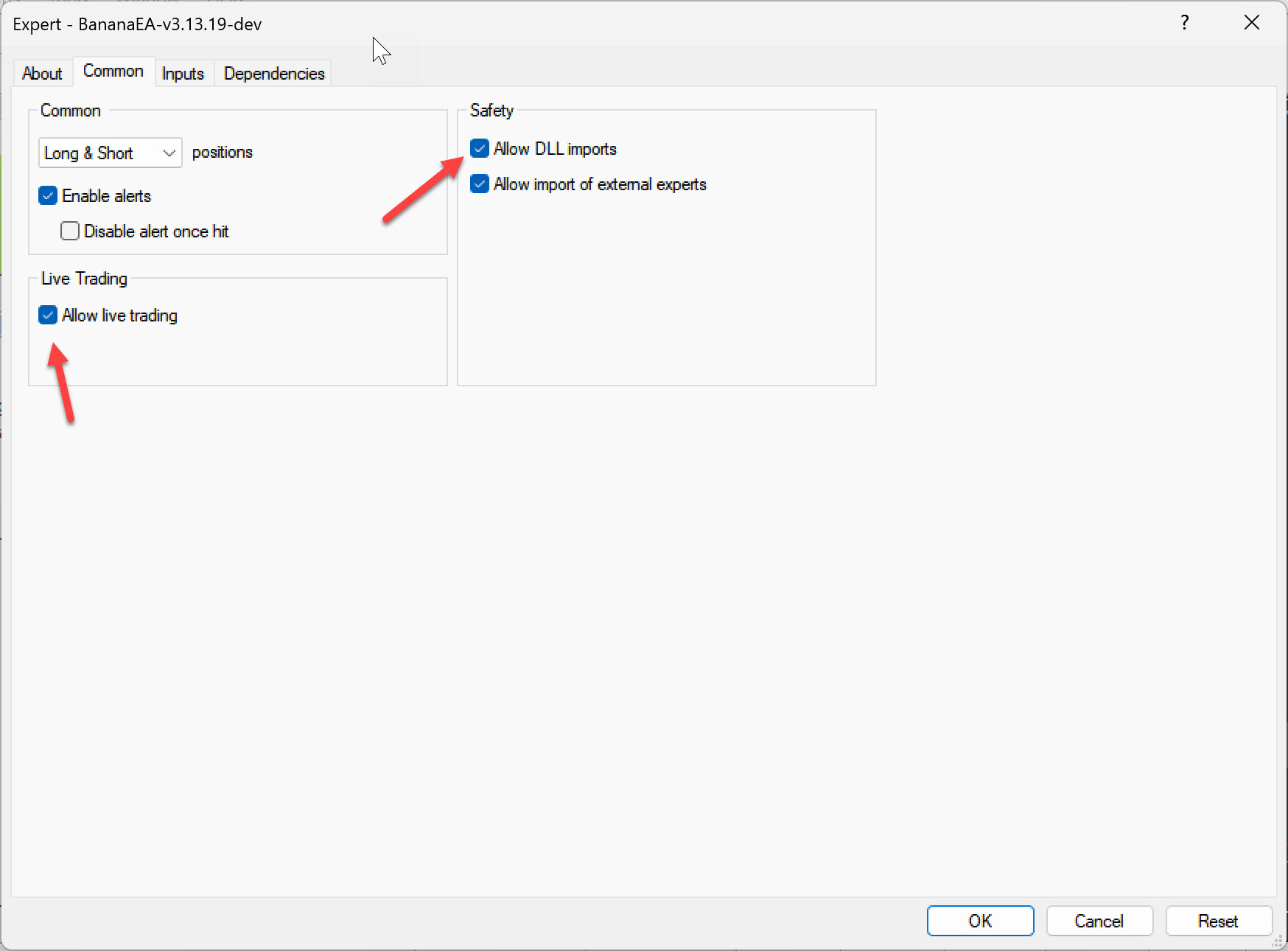

Configure Basic Settings

**On "Common" tab:**

```
☑ Allow live trading
☑ Allow DLL imports
☑ Confirm DLL function calls
☑ Allow imports of external experts
```

**On "Inputs" tab:** (Start with default settings)

* **Lot Size**: 0.01 (micro lots for demo)
* **Max Spread**: 3.0 pips
* **Risk Percent**: 2% (conservative)

Click "OK"

***

## ✅ Step 5: Verify Installation

### Check EA is Active

**Look for these indicators:**

1. **Smiley face icon** in top-right corner of chart
2. **EA name "BananaEA"** displayed on chart
3. **"Expert Advisors" tab** in Terminal window (bottom)

### Common Status Messages

**✅ Good Messages:**

* "BananaEA initialized successfully"
* "iTradeAIMSLib loaded successfully"
* "Ready for trading"
* "Waiting for signal"

**⚠️ Warning Messages:**

* "AutoTrading is disabled" → Click AutoTrading button
* "Not enough money" → Normal on small demo accounts
* "Invalid symbol" → Use correct currency pair

**❌ Error Messages:**

* "Expert advisor is not allowed to trade" → Check settings
* "DLL not allowed" → Enable DLL imports in settings
* "iTradeAIMSLib not found" → Library file missing from Libraries folder

> **⚠️ Library Check**: If you don't see "iTradeAIMSLib loaded successfully", the library file was not installed correctly. Ensure `iTradeAIMSLib.ex4` is in the `MQL4/Libraries/` folder.

***

## 🎮 Step 6: Test With Demo Account

### Start Conservative

**First Week Settings:**

* **Account**: Demo only (never live account)
* **Lot Size**: 0.01 (smallest possible)
* **Risk**: 1-2% maximum
* **Timeframe**: Focus on learning, not profit

### Monitor Initial Trades

**Watch for:**

1. **Trade execution** - EA places trades automatically
2. **Risk management** - Stop losses and take profits set correctly
3. **Account balance** - Should not decline rapidly
4. **Trade frequency** - Expect 5-15 trades per day

### Track Performance

**Daily Review:**

* **Winning trades vs losing trades**
* **Average profit per trade**
* **Maximum drawdown**
* **EA behavior during news events**

***

## 🔧 Step 7: Optimization (After 1-2 Weeks)

### Fine-Tune Settings

**After observing EA performance:**

1. **Adjust lot sizes** based on comfort level
2. **Modify risk percentage** (1-5% range)
3. **Test different timeframes** (M1, M5, M15)
4. **Experiment with spread settings**

### Advanced Configuration

**For experienced users:**

* **News filter**: Disable trading during high-impact news
* **Time filters**: Limit trading to specific hours
* **Correlation filters**: Avoid trading correlated pairs simultaneously

***

## 🚨 Critical Success Tips

### Never Skip These Steps

1. **Always start with demo account** (minimum 2 weeks)
2. **Test EA thoroughly** before any live trading
3. **Start with minimal risk** (1-2% per trade maximum)
4. **Keep MT4 running** 24/7 for best results
5. **Monitor EA regularly** (first few days especially)

### Warning Signs to Watch

**Stop EA immediately if:**

* Account loses more than 10% in one day
* EA places trades outside market hours
* Trades are much larger than expected
* Error messages appear repeatedly

***

## 🎯 Next Steps

### Ready to Learn More?

* **Understand EA basics** → [🤔 Understanding EAs](https://github.com/itradeaims/bananaEA-dev/blob/dev/gitbook/beginner-course/beginner-understanding-eas.md)
* **Learn trading fundamentals** → [📚 Trading Basics](https://github.com/itradeaims/bananaEA-dev/blob/dev/gitbook/beginner-course/beginner-tutorial.md)
* **Optimize your setup** → [⚙️ Advanced Settings](https://github.com/itradeaims/bananaEA-dev/blob/dev/gitbook/beginner-course/advanced-settings.md)

### Need Help?

* **Common problems** → [🛠️ Troubleshooting](https://github.com/itradeaims/bananaEA-dev/blob/dev/gitbook/beginner-course/troubleshooting.md)
* **FAQ section** → [❓ Frequently Asked Questions](https://github.com/itradeaims/bananaEA-dev/blob/dev/gitbook/beginner-course/faq.md)
* **Community support** → [💬 Discord/Telegram](https://github.com/itradeaims/bananaEA-dev/blob/dev/gitbook/beginner-course/support.md)

***

## Congratulations! 🎉

*You've successfully installed BananaEA. Remember: Start small, learn continuously, and never risk money you can't afford to lose.*
